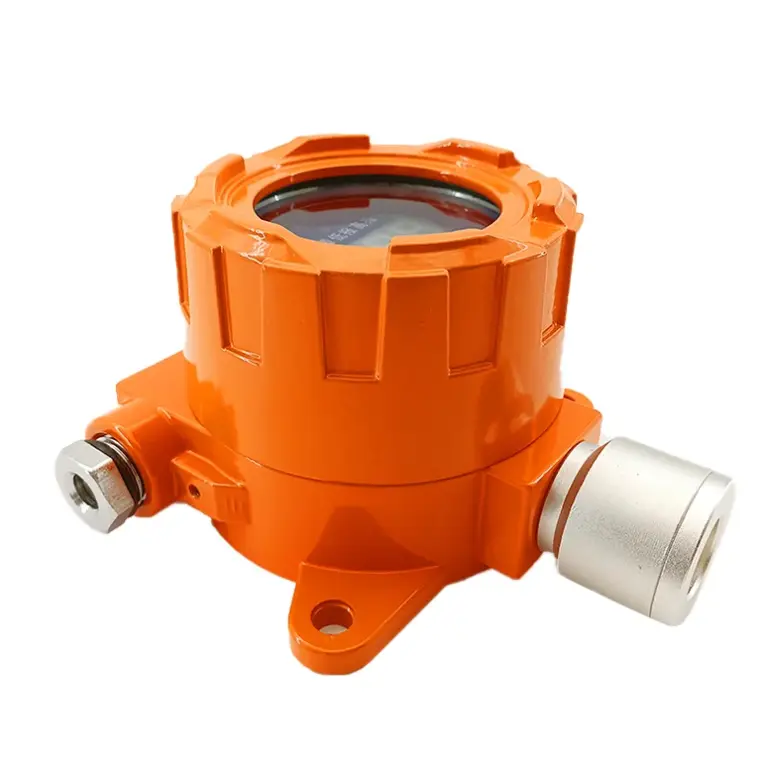

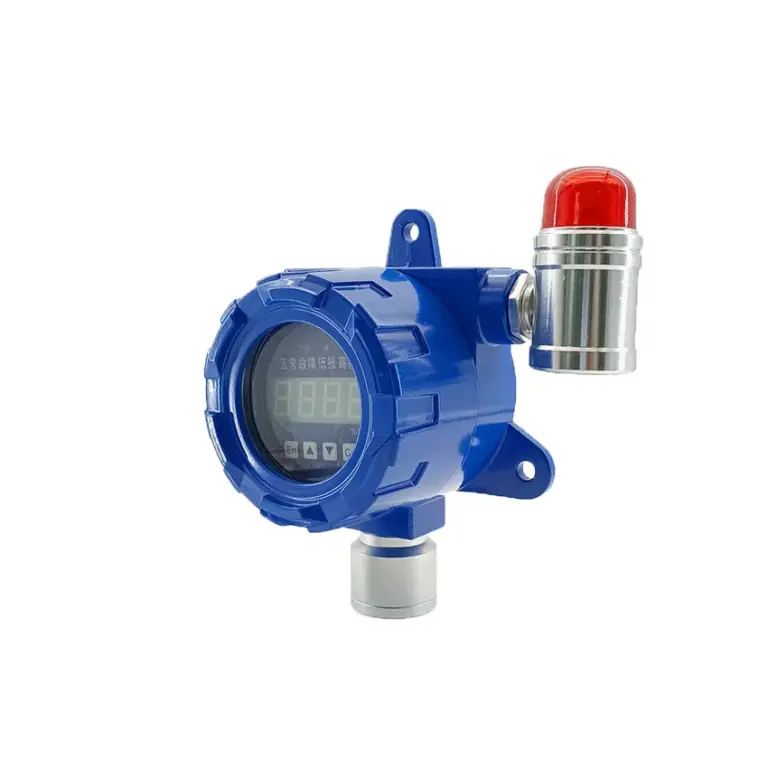

DTS A001 Fixed Gas Detector - Henan Duotesi Electronic Technology Co., Ltd.

Product Introduction

The point-gas detector is a new on-line detection instrument produced by our company. This machine adopts high light digital display, high decibel sound and light alarm, and high-performance imported sensor. Detection principle: electrochemical, catalytic combustion, infrared, PID, semiconductor, etc.,and it can detect more than 500 kinds of gases.The performance of this product is stable, accurate accuracy, long life, easy to operate.

The point-gas detector converts the gas concentration in the air into digital signal, which can output standard (4~20) mA current signal, or two-line and four-line RS485 (MODBUS-RTU) signal, which can be compatible with secondary instrument. PLC, DCS system, data acquisition module,with the characteristics of long transmission distance and good anti-interference performance.

Product Features

Alarm record query function

Detection accuracy and Adjustable range

Long life, high sensitivity, low drift, stable and reliable work

Sensor failure self-test, two-level concentration alarm, with relay output function

Digital display of gas concentration and working status. Temperature compensation, automatic zero correction function.

4- 20mA standard analog output and RS485 digital output, which can beuploaded to PLC and DCS system.

Infrared remote control mode, without opening the cover can be adjusted to thedetector, safe and convenient.

Adopting explosion-proof design. suitable for hazardous conditions 1. 2 zones.

Technical Specifications

tracer gas	range	Alarm value	least count	response time
combustible gas (EX)	0-100%LEL	20%LEL	1%LEL	≤ 10 seconds
oxygen (O2)	0-30%VOL	19.5%Vol	0.1%Vol	≤ 15 seconds
carbon monoxide (CO)	0-1000ppm	50ppm	1ppm	≤25 seconds
carbon dioxide (CO2)	0-5%VOL	0.2%VOL	0.01%VOL	≤30 seconds
formaldehyde (CH2O)	0-50ppm	10ppm	0.1ppm	≤ 40 seconds
ozone (O3)	0-20ppm	5ppm	0.1ppm	≤30 seconds
Hydrogen sulfide (H2S)	0-100ppm	15ppm	1ppm	≤ 30 seconds
sulfur dioxide (SO2)	0-20ppm	5ppm	0.1ppm	≤ 30 seconds
nitric oxide (NO)	0-250ppm	20ppm	1ppm	≤60 seconds
nitrogen dioxide (NO2)	0-20ppm	5ppm	0.1ppm	≤ 60 seconds
nitrogen oxide (NOX)	0-100ppm	20ppm	1ppm	≤ 60 seconds
chlorine gas(CL2)	0-20ppm	5ppm	0.1ppm	≤ 60 seconds
ammonia gas(NH3)	0-100ppm	15ppm	0.1ppm	≤60 seconds
hydrogen (H2)	0-1000ppm	50ppm	1ppm	≤ 60 seconds
hydrogen cyanide (HCN)	0-20ppm	2ppm	0.1ppm	≤ 60 seconds
Hydrogen chloride(HCL)	0-50ppm	5ppm	0.1ppm	≤60 seconds
Phosphine(PH3)	0-20ppm	2ppm	0.1ppm	≤ 60 seconds
Ethylene oxide (ETO)	0-100ppm	20ppm	1ppm	≤120 Seconds
phosgene (COCL2)	0-100ppm	5ppm	1ppm	≤ 60 seconds
silane (SiH4)	0-50ppm	10ppm	0.1ppm	≤ 60 seconds
Fluoride (F2)	0-20ppm	5ppm	0.1ppm	≤ 30 seconds
hydrogen fluoride (HF)	0-20ppm	5ppm	0.1ppm	≤30 seconds
bromine hydride (HBr)	0-50ppm	10ppm	0.1ppm	≤60 seconds
arsenic hydride (AsH3)	0-20ppm	1ppm	0.1ppm	≤ 30 seconds
Hydrazine, hydrazine (N2H4)	0-100ppm	20ppm	1ppm	≤ 60 seconds
Tetrahydrothiophene (THT)	0-100mg/m3	20mg/m3	1mg/m3	≤ 60 seconds
Bromine (BR2)	0-20ppm	5ppm	0.1ppm	≤ 60 seconds
ethyne (C2H2)	0-100%LEL	20%LEL	1%LEL	≤60 seconds
ethylene (C2H4)	0-100%LEL	20%LEL	1%LEL	≤ 60 seconds
alcohol (C2H6O)	0-100%LEL	20%LEL	1%LEL	≤30 seconds
carbinol (CH4O)	0-100%LEL	20%LEL	1%LEL	≤30 seconds
carbon disulfide (SC2)	0-50ppm	10ppm	0.1ppm	≤120 Seconds
acrylonitrile (C3H3N)	0-50ppm	10ppm	0.1ppm	≤60 seconds
aminomethane (CH5N)	0-50ppm	10ppm	0.1ppm	≤60 seconds
styrene (C8H8)	0-100ppm	20ppm	1ppm	≤30 seconds
chlorylene (C2HCL3)	0-50ppm	20ppm	0.1ppm	≤ 60 seconds
Celfume (CH3Br)	0-100ppm	20ppm	1ppm	≤30 seconds
benzene (C6H6)	0-100ppm	20ppm	1ppm	≤ 30 seconds
methylbenzene (C7H8)	0-100ppm	20ppm	1ppm	≤ 30 seconds
dimethylbenzene (C8H10)	0-100ppm	20ppm	1ppm	≤30 seconds
Sulfur hexafluoride (SF6)	0-100ppm	20ppm	1ppm	≤30 seconds
VOC/TVOC	0-1000ppm	50ppm	1ppm	≤ 30 seconds
Laughing gas (N2O)	0-100ppm	20ppm	0.01ppm	≤ 30 seconds
argon (Ar)	0-100%vol	20%Vol	1vol	≤ 30 seconds

Application Fields

It is used to refinery, chemical plant, LPG station, boiler room, refueling station, spray room and other industrial sites.

Detection principle: catalytic combustion, electrochemical, infrared,
PID, semiconductor
Detection gas: toxic, flammable and explosive, oxygen, TVOC, etc
Sampling method: free diffusion.
Test range: 0-1000ppm; 0-100% LEL; 0-100% VOL
Resolution: 0.01 / 0.1 / 1
Accuracy: ≤3% FS.
debugging method: button and remote control (remote control is
optional).
Response time: combustible＜30s and toxicometry＜60s。
Recovery time: combustible<30s and toxicometry <60s.
Environment temperature: -20℃ ~55℃.
Relative humidity: ≤95%.
Explosion-proof mode: explosion-proof type.
Explosion-proof grade: Ex d ⅡC T6 Gb.
Protection level: IP66.
Power supply: DC24V ± 12V.
Output signal: (4-20) mA, RS485.
Power consumption: ≤3W.
Fix screw: M20X1.5 or G1 / 2
Use cables: ≥1.5mm2×3 (dividing line), ≥1.5mm2×4 BUS
