Product Introduction

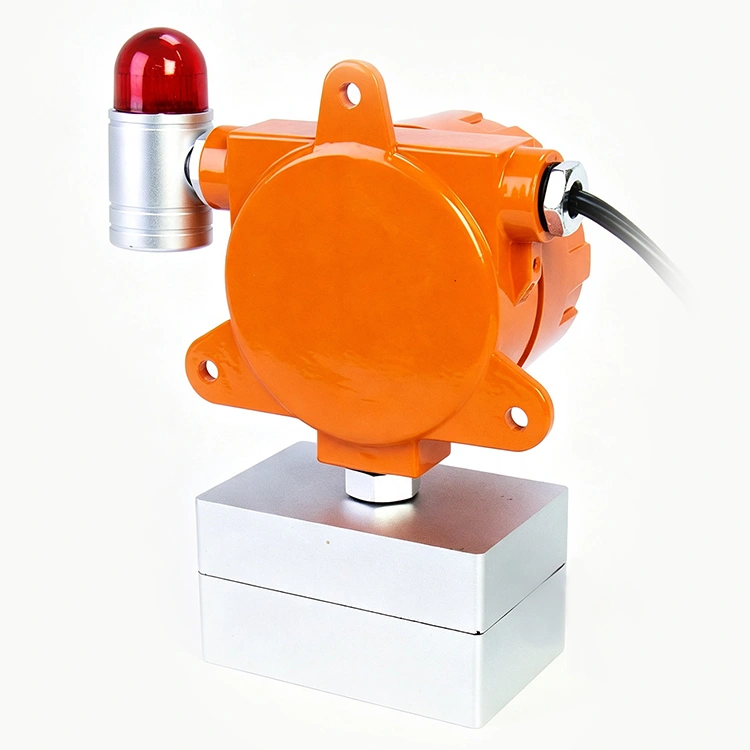

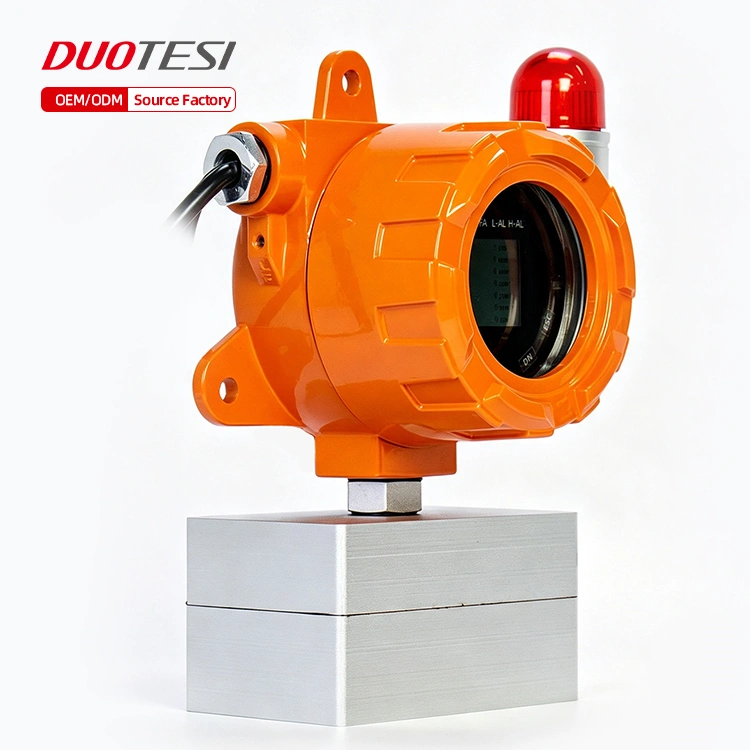

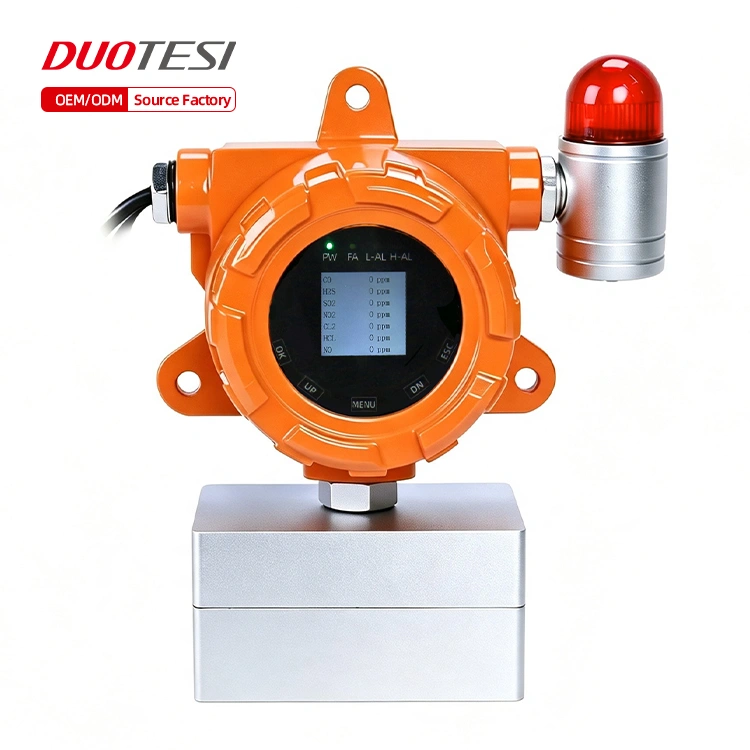

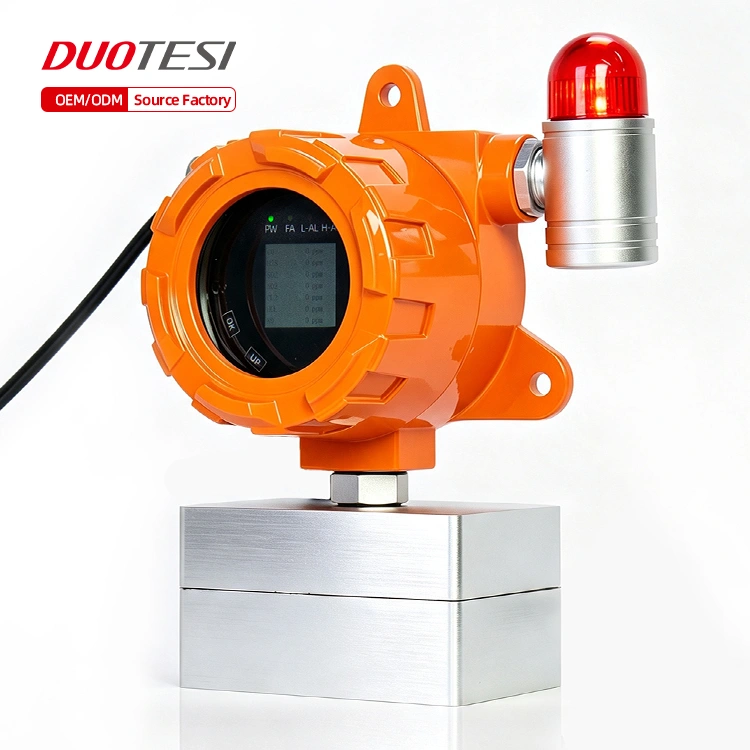

The 6-IN-1 gas detector is a new type of gas detector produced by our company. It adopts a modular sensor design that requires no calibration. The product settings are stored in the sensor module, making replacement and after-sales maintenance convenient. It offers excellent repeatability and temperature/humidity characteristics, long service life and easy operation, and is suitable for detecting gas concentrations in industrial environments.
The detector converts the concentration signal of the target gas in the air into a digital signal for display. It provides a three-wire 4–20 mA current signal and RS485 signal output, and can optionally be equipped with wireless communication, allowing users to choose according to their needs.
Product Features
Technical Specifications
| Detection Principle | Semiconductor, catalytic combustion, electrochemical, infrared, PID photoionization |
| Sampling Method | Natural diffusion |
| Display Method | High-brightness red digital tube |
| Status Indication | 4 indicator lights: power, fault, alarm 1, alarm 2 |
| Ambient Temperature | -20°C to 50°C |
| Relative Humidity | < 95% RH |
| Explosion-Proof Type | Flameproof enclosure |
| Explosion-Proof Rating | Ex d IIC T6 Gb |
| Power Supply | DC 24 V ± 30% |
| Output Signal | Current: 4–20 mA; switching output: 2 channels |
| Adjustment Method | Infrared remote control |
| Power Consumption | ≤ 3 W |
| Cable Requirements | ≥ 1.5 mm² shielded cable |
| Max. Distance Between Detector and Host | ≤ 1000 m |
| Weight | ≤ 2000 g |
| Pressure Range | 86–106 kPa |
Application Fields
The 6-IN-1 gas detector is suitable for gas safety detection and alarm in industrial sites where toxic gases may be present, such as power plants, oil refineries, chemical plants, liquefied gas stations, gas boiler rooms, gas filling stations and spray painting rooms.
Measurable Gas
| Gas | Range | Alarm Point | Resolution | Response Time |
| Combustible gas (EX) | 0–100 %LEL | 20 %LEL | 1 %LEL | ≤ 10 s |
| Oxygen (O₂) | 0–30 %vol | 19.5 %vol | 0.1 %vol | ≤ 15 s |
| Carbon monoxide (CO) | 0–1000 ppm | 50 ppm | 1 ppm | ≤ 25 s |
| Carbon dioxide (CO₂) | 0–5 %vol | 0.2 %vol | 0.01 %vol | ≤ 30 s |
| Formaldehyde (CH₂O) | 0–50 ppm | 10 ppm | 0.1 ppm | ≤ 40 s |
| Ozone (O₃) | 0–20 ppm | 5 ppm | 0.1 ppm | ≤ 30 s |
| Hydrogen sulfide (H₂S) | 0–100 ppm | 15 ppm | 1 ppm | ≤ 30 s |
| Sulfur dioxide (SO₂) | 0–20 ppm | 5 ppm | 0.1 ppm | ≤ 30 s |
| Nitric oxide (NO) | 0–250 ppm | 20 ppm | 1 ppm | ≤ 60 s |
| Nitrogen dioxide (NO₂) | 0–20 ppm | 5 ppm | 0.1 ppm | ≤ 60 s |
| Nitrogen oxides (NOx) | 0–100 ppm | 20 ppm | 1 ppm | ≤ 60 s |
| Chlorine (Cl₂) | 0–20 ppm | 5 ppm | 0.1 ppm | ≤ 60 s |
| Ammonia (NH₃) | 0–100 ppm | 15 ppm | 0.1 ppm | ≤ 60 s |
| Hydrogen (H₂) | 0–1000 ppm | 50 ppm | 1 ppm | ≤ 60 s |
| Hydrogen cyanide (HCN) | 0–20 ppm | 2 ppm | 0.1 ppm | ≤ 60 s |
| Hydrogen chloride (HCl) | 0–50 ppm | 5 ppm | 0.1 ppm | ≤ 60 s |
| Phosphine (PH₃) | 0–20 ppm | 2 ppm | 0.1 ppm | ≤ 60 s |
| Ethylene oxide (EtO) | 0–100 ppm | 20 ppm | 1 ppm | ≤ 120 s |
| Phosgene (COCl₂) | 0–100 ppm | 5 ppm | 1 ppm | ≤ 60 s |
| Silane (SiH₄) | 0–50 ppm | 10 ppm | 0.1 ppm | ≤ 60 s |
| Fluorine (F₂) | 0–20 ppm | 5 ppm | 0.1 ppm | ≤ 30 s |
| Hydrogen fluoride (HF) | 0–20 ppm | 5 ppm | 0.1 ppm | ≤ 30 s |
| Hydrogen bromide (HBr) | 0–50 ppm | 10 ppm | 0.1 ppm | ≤ 60 s |
| Arsine (AsH₃) | 0–20 ppm | 1 ppm | 0.1 ppm | ≤ 30 s |
| Hydrazine (N₂H₄) | 0–100 ppm | 20 ppm | 1 ppm | ≤ 60 s |
| Tetrahydrothiophene (THT) | 0–100 mg/m³ | 20 mg/m³ | 1 mg/m³ | ≤ 60 s |
| Bromine (Br₂) | 0–20 ppm | 5 ppm | 0.1 ppm | ≤ 60 s |
| Acetylene (C₂H₂) | 0–100 %LEL | 20 %LEL | 1 %LEL | ≤ 60 s |
| Ethylene (C₂H₄) | 0–100 %LEL | 20 %LEL | 1 %LEL | ≤ 60 s |
| Ethanol (C₂H₆O) | 0–100 %LEL | 20 %LEL | 1 %LEL | ≤ 30 s |
| Methanol (CH₄O) | 0–100 %LEL | 20 %LEL | 1 %LEL | ≤ 30 s |
| Carbon disulfide (CS₂) | 0–50 ppm | 10 ppm | 0.1 ppm | ≤ 120 s |
| Acrylonitrile (C₃H₃N) | 0–50 ppm | 10 ppm | 0.1 ppm | ≤ 60 s |
| Methylamine (CH₅N) | 0–50 ppm | 10 ppm | 0.1 ppm | ≤ 60 s |
| Styrene (C₈H₈) | 0–100 ppm | 20 ppm | 1 ppm | ≤ 30 s |
| Trichloroethylene (C₂HCl₃) | 0–50 ppm | 20 ppm | 0.1 ppm | ≤ 60 s |
| Methyl bromide (CH₃Br) | 0–100 ppm | 20 ppm | 1 ppm | ≤ 30 s |
| Benzene (C₆H₆) | 0–100 ppm | 20 ppm | 1 ppm | ≤ 30 s |
| Toluene (C₇H₈) | 0–100 ppm | 20 ppm | 1 ppm | ≤ 30 s |
| Xylene (C₈H₁₀) | 0–100 ppm | 20 ppm | 1 ppm | ≤ 30 s |
| Sulfur hexafluoride (SF₆) | 0–100 ppm | 20 ppm | 1 ppm | ≤ 30 s |
| VOC/TVOC | 0–1000 ppm | 50 ppm | 1 ppm | ≤ 30 s |
| Nitrous oxide (N₂O) | 0–100 ppm | 20 ppm | 0.01 ppm | ≤ 30 s |
| Argon (Ar) | 0–100 %vol | 20 %vol | 1 %vol | ≤ 30 s |
