Product Introduction

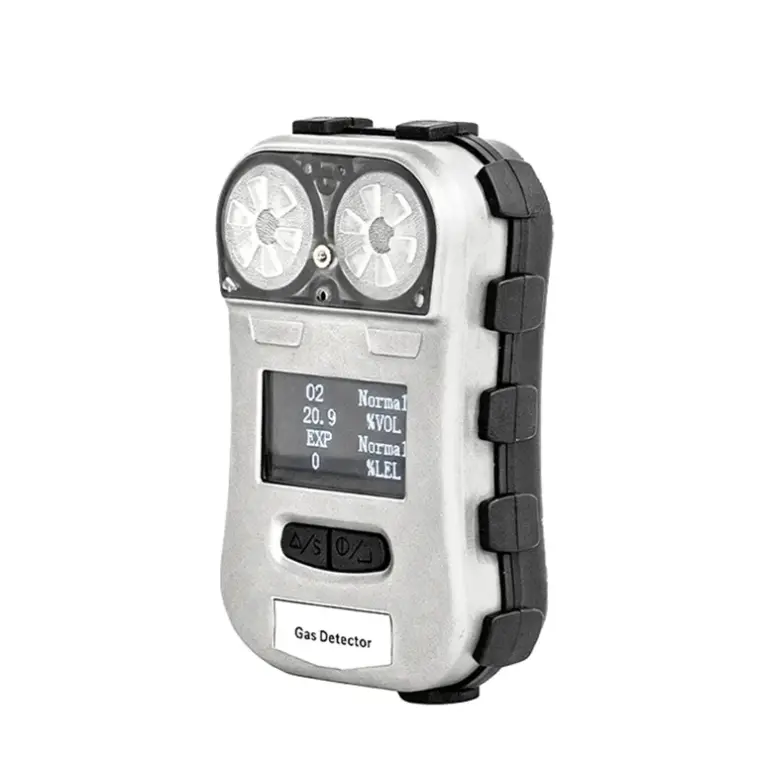

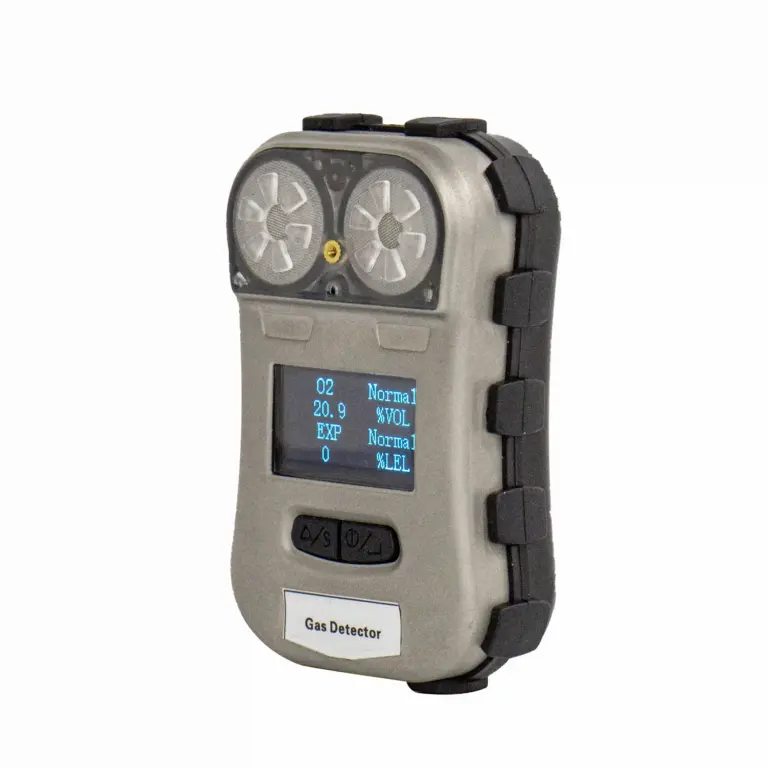

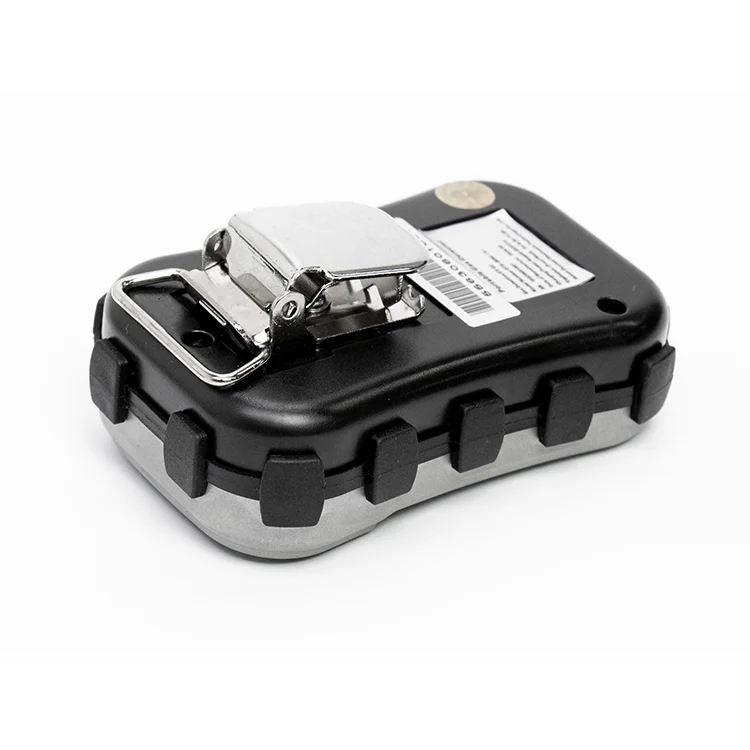

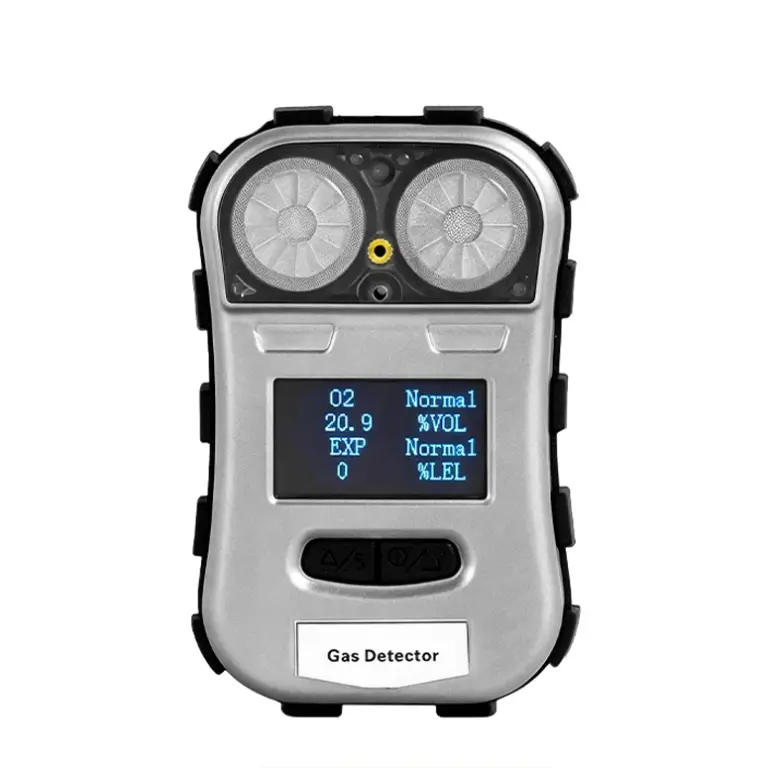

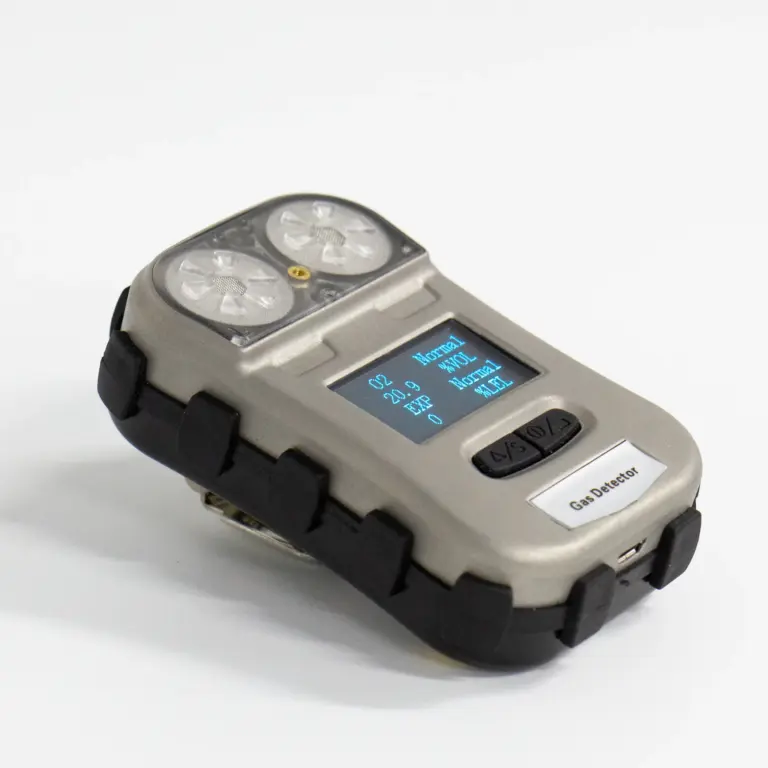

This instrument is a compact, portable gas detector with an OLED display.It can accommodate one or two gas sensors, allowing users to select sensor combinations based on actual needs.It is powered by a high- capacity rechargeable lithium battery, equipped with a USB charging port, and features audible, visual, and vibration alarms.
Product Features
Supports multiple gas detection via different sensor combinations
Fast response, high accuracy, stable and reliable
Compact and portable
Dual alarm threshold settings, supports audible/visual alarm and vibration alert
Clear OLED display
Easy operation and maintenance
Can be paired with data analysis software (optional)
Technical Specifications
| Detection Method | Diffusion |
| Power Supply | 3.7 V, 2000 mAh Li-polymer battery |
| Charging | DC 5 V, 1 A adapter |
| Sensor Principle | Electrochemical, catalytic combustion, NDIR, etc. |
| Display | OLED screen |
| Alarm Indications | Audible, visual and vibration |
| Protection Rating | IP45 |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | 5–90% RH |
| Dimensions (L × W × H) | 92 × 58 × 28.5 mm |
| Weight | 150 g (net) |
Application Fields
This instrument is suitable for harsh industrial environments, accurately detecting various toxic, hazardous, flammable, or explosive gases diffused in the air, enabling timely protective actions.
