Product Introduction
DTS-B004(GY) detector integrates advanced technology with user-friendly design, specifically engineered for efficient prevention of gas leakage incidents. It continuously monitors gas concentrations and performs precise analysis, simultaneously displaying detection results and automatically storing data.
Additionally, it features built-in voice alerts and audio-visual alarm functions to issue immediate warnings upon detecting hazards, thereby comprehensively safeguarding your life and property safety.
Product Features
Alarms such as excessive gas concentration in voice announcements and battery under-voltage
Powered by high-capacity lithium-ion batteries, it enables prolonged continuous operation.
Use high-precision, highly stable gas sensors

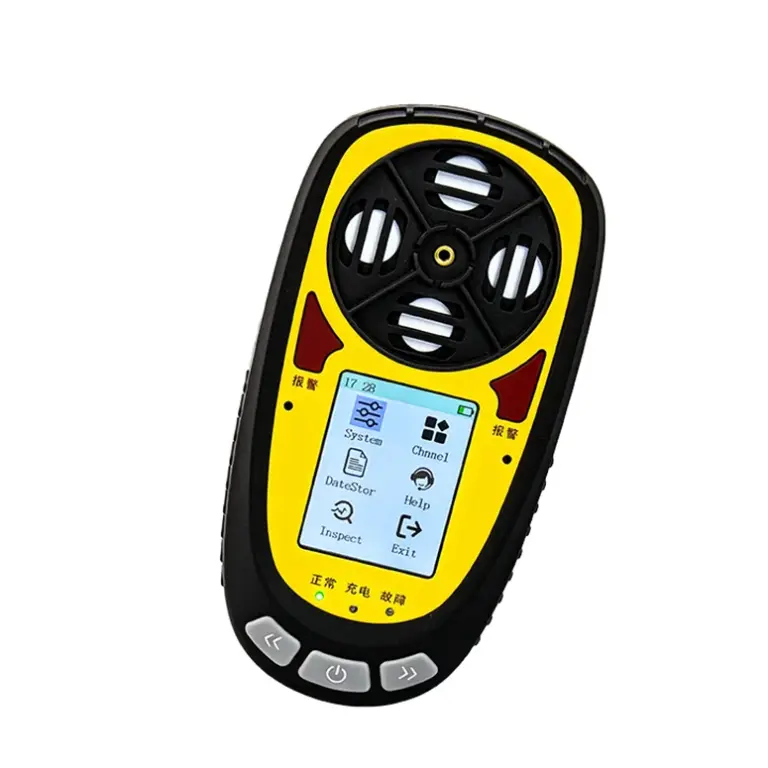

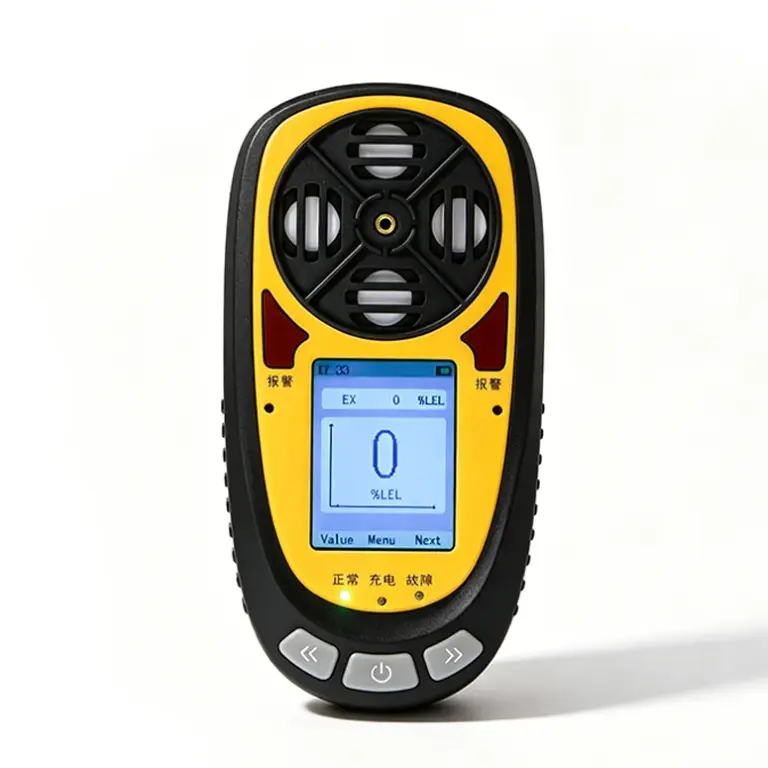

2.0-inch color LCD display with Chinese and English language switching support
Explosion-proof design, meeting requirements for use in explosion-prone environments
Includes built-in storage and features such as viewing history records and historical alarms
Made of high-strength ABS engineering plastic, featuring water resistance, dust resistance, and explosion-proof properties.
High cost-effectiveness with low maintenance expenses
USB Interface High-Speed Data Export Function (Optional)
Bluetooth printing of real-time, historical, and alarm data (optional)
Network Communication, Data, and Location Reporting Cloud Platform (Optional)
Fall Detection Alarm, SOS Emergency Call (Optional)
Technical Specifications
| parameter type | Parameter Content | parameter type | Parameter Content |
| sample mode | Diffuse | display screen | 2.0-inch color TFT |
| Operation Language | Chinese/English | Alarm Method | Voice, Audio-Visual Effects, Vibration |
| battery capacity | 3.7V 2500mAh | Instrument Charging | DC 5V1A |
| USB | Type-C | Shell Material | ABS+PC |
| anti-hazard classification | Exia II CT4 | levels of protection | IP65 |
| working temperature | -20℃ ~ 55℃ | Working Humidity | 10%RH ~ 95%RH |
| instruments weight | 220g | Instrument Size | 137mm*67mm*32mm |
Application Fields
DTS-B004(GY) detector is suitable for industrial production applications in chemical, steel, coal mining, and metallurgical sectors, as well as for laboratory operations and daily monitoring scenarios.
