Product Introduction

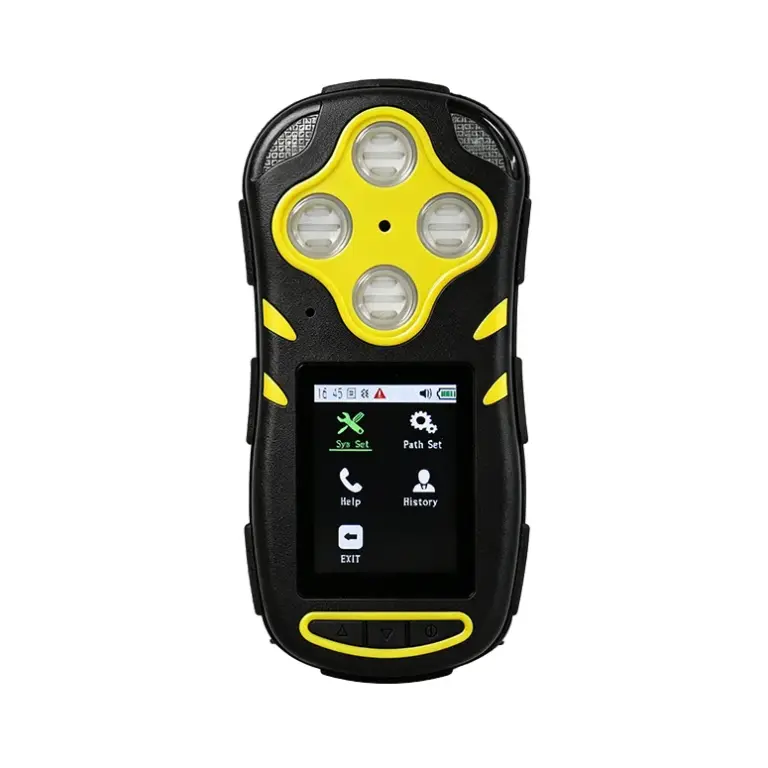

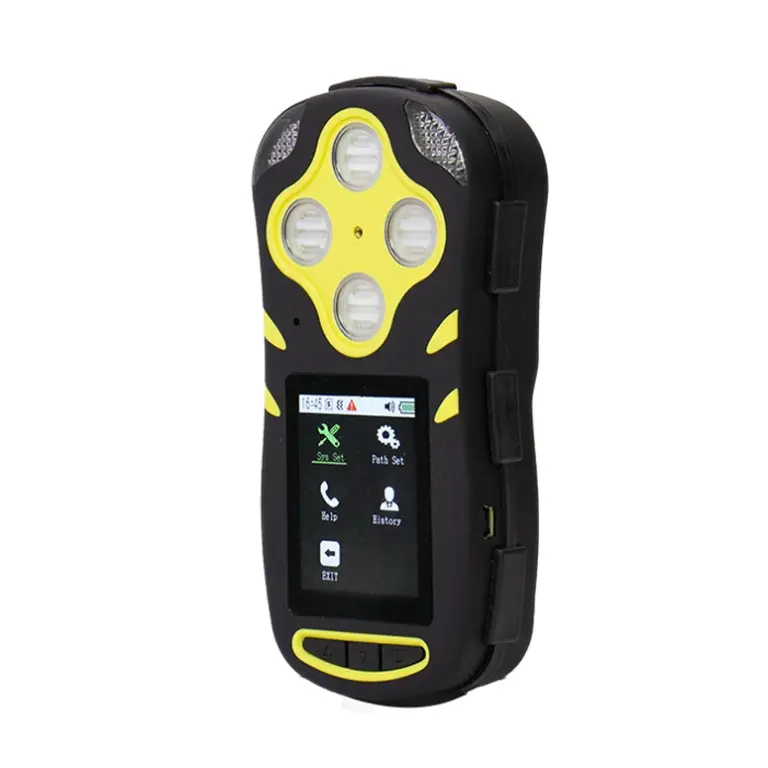

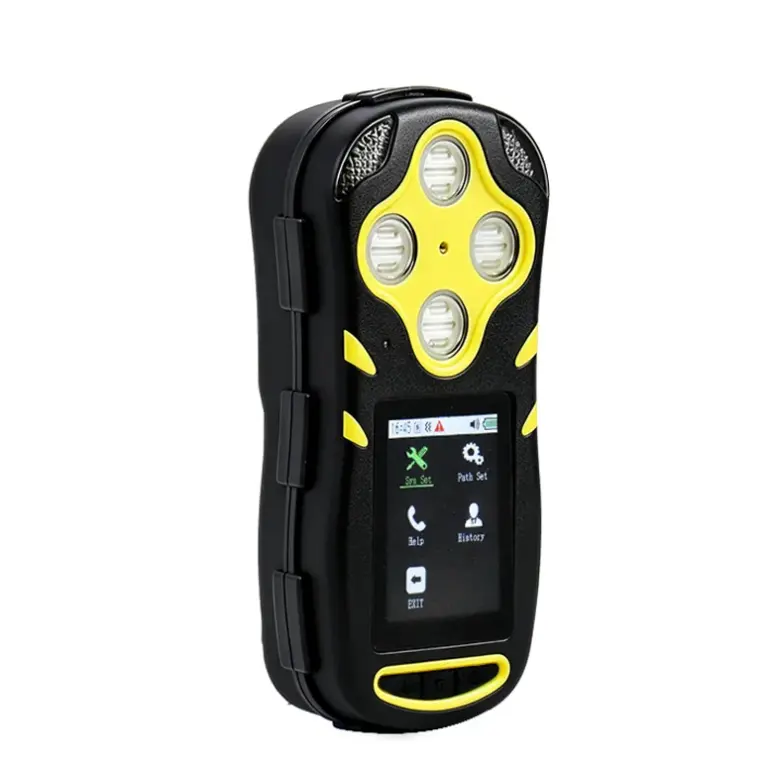

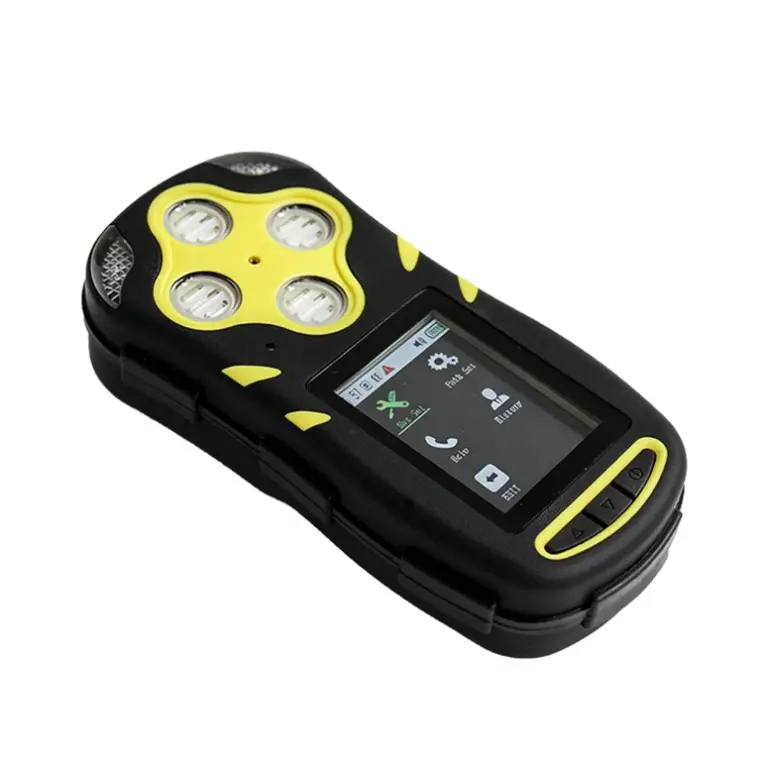

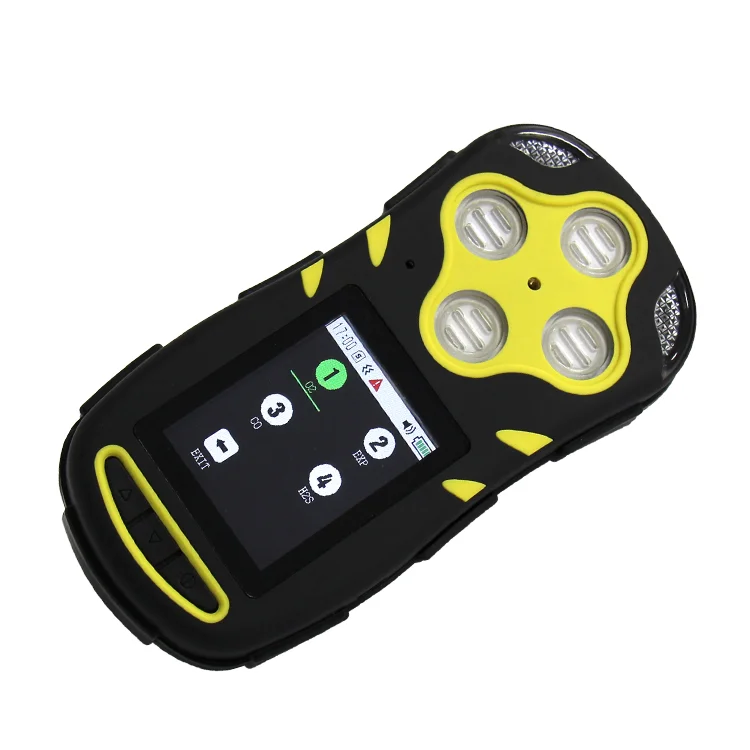

DTS-B004(HD) is a device capable of continuously and rapidly monitoring the concentration of specific gases in the surrounding environment. From the selection of sensors and circuit chips, to testing and final production, all processes have undergone strict review procedures. The instrument features fast response speed, high measurement accuracy, good stability and repeatability.
Product Features
Technical Specifications
| Sampling Method | Diffusion type |
| Display Technology | TFT color LCD |
| Operating Language | Chinese and English (other languages can be customized) |
| Alarm Method | Sound, light and vibration prompts |
| Battery Capacity | 7.4 V, 2000 mAh |
| Charging Method | 8.4 V, 1 A charger |
| Data Storage | Supported |
| Data Export | Optional |
| Explosion-Proof Grade | Ex ib IIC T4 Gb |
| Protection Grade | IP54 |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | ≤ 90% RH |
| Shell Material | ABS + PC |
| Overall Size | 135 × 60 × 20 mm |
| Overall Weight | 200 g |
Application Fields
The instrument is widely used for on-site detection in places such as metal mines, coal mines, petrochemicals, metallurgy and smelting, coking, gas and power, emergency rescue, municipal fire protection, environmental monitoring, tunnel operations and wastewater treatment. It can also be used in conjunction with an external suction pump to measure gas concentrations in tunnels or areas where access is difficult.
