Product Introduction

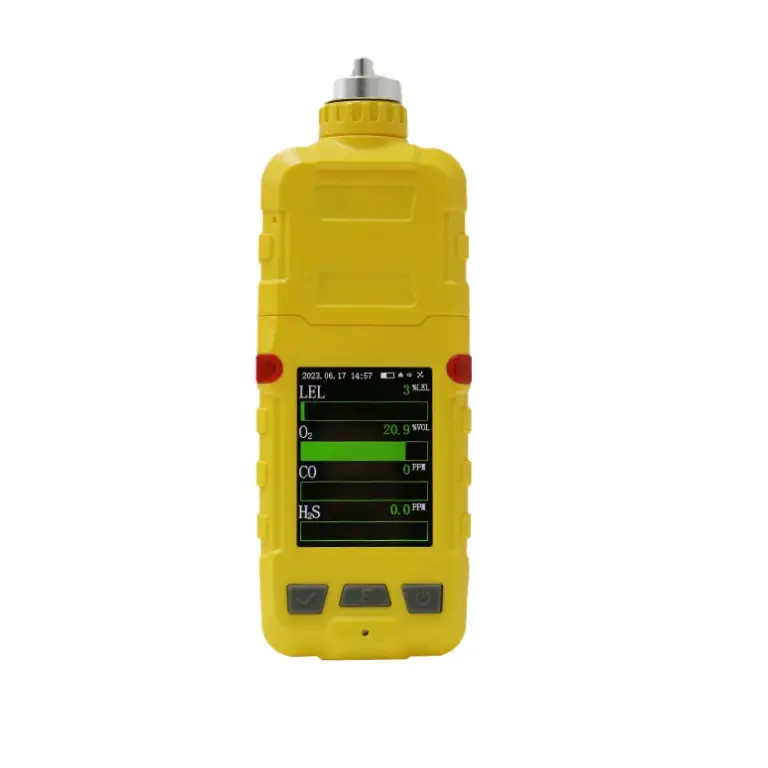

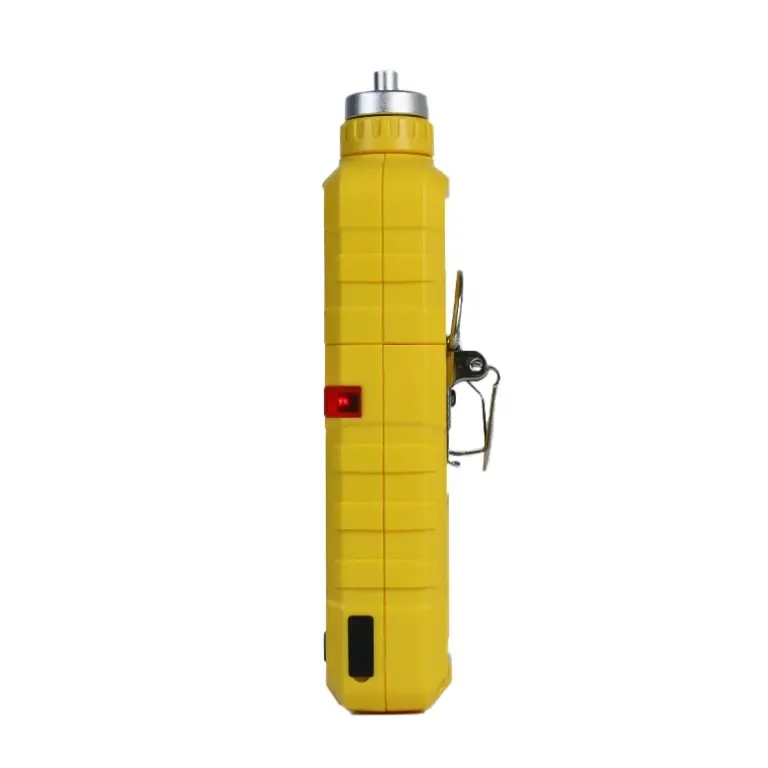

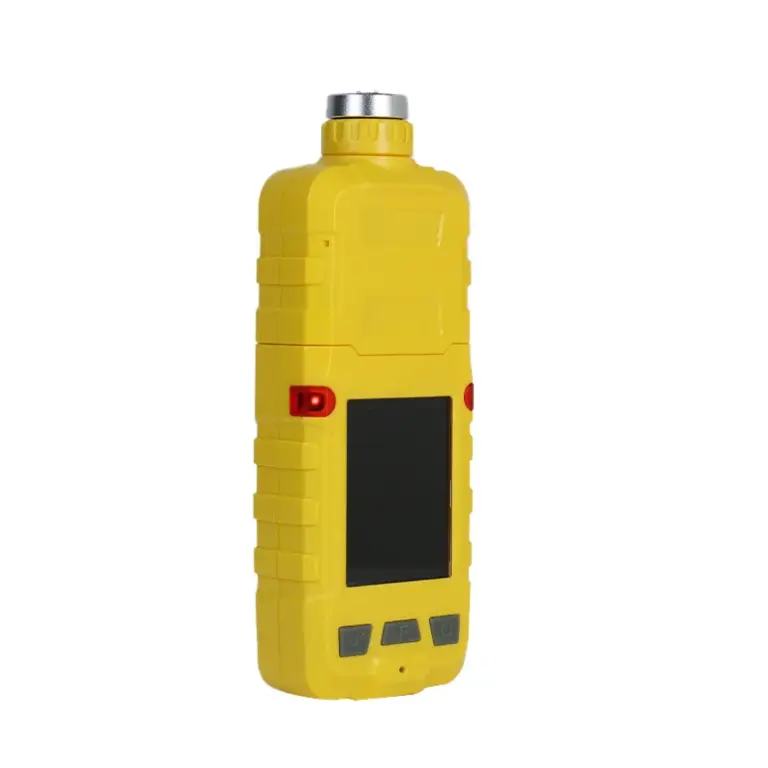

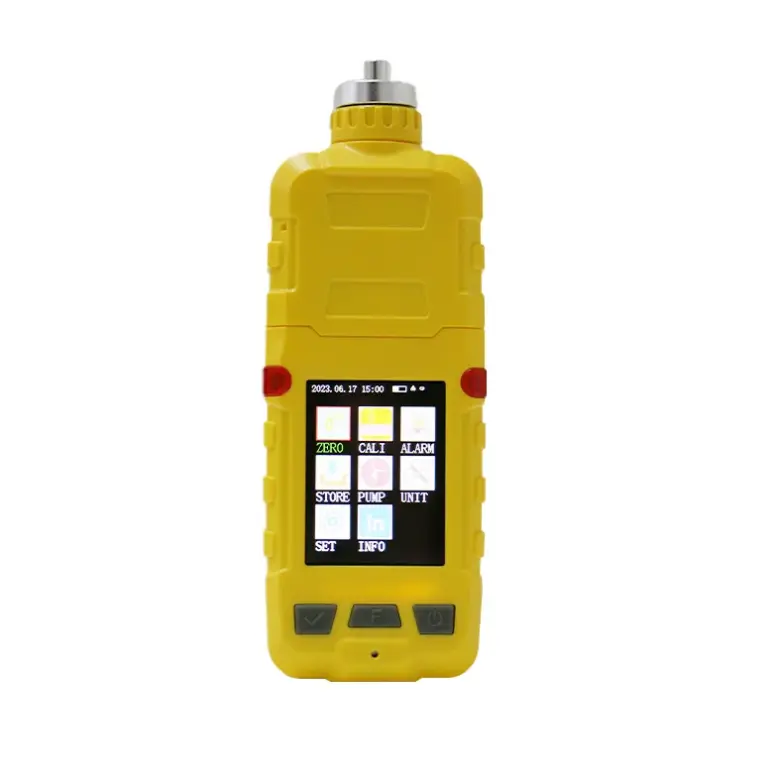

DTS C004 4-IN-1 Portable Pump Gas Detector can measure and alarm on the concentration of combustible gas (LEL), oxygen (O2), carbon monoxide (CO), and hydrogen sulfide (H2S) gases. The instrument detects gas concentrations at the site and can trigger audio-visual alarms. Equipped with an integrated suction pump, it meets the requirements for gas measurement in special settings, featuring simple operation, compact size, easy portability, and high precision.
Product Features
Simultaneous detection and display of 2-5 gas concentrations
Built-in gas sampling pump, flow rate >0.5L per minute, sampling distance >20 meters
2.6-inch high-definition display, clearer display
2500mAh large capacity battery, longer use time
Can choose to measure any combination of two to four gases among dozens of harmful gases
Data storage and on-site analysis capability. Can communicate with computer on-line to realize the transmission of stored data, and can list the historical data, plot the time change and print the function
Can communicate with computer online to realize the transmission of dynamic real-time data, and observe the changes of gas concentration at the detection site through computer
Technical Specifications
| Technical Index | |
| Product model | DTS-C005 |
| Measurement Methods | Pump suction |
| Sampling distance | Flow rate per minute >0.5L, sampling distance >20 meters |
| Measuring gas | LEL、CH4、O2、CO、H2S、SO2、NO2、CL2、H2、NH3、CO2、PID |
| Display Mode | Large-screen LCD display |
| Alarm method | Sound, light, vibration alarm, alarm sound level 80dB |
| Alarm point setting | Full range adjustable |
| Power supply | 2500 mA rechargeable |
| temperature/humidity | Temperature: -40℃~60℃ Humidity: ≤95%RH (no condensation) |
| Dimension/Weight | 192mm×66mm×35mm ≈300g |
| Standard Configuration | Alarm host *1, charger *1 (including a charging cable), calibration cover *1, hose *1 (3 meters), instructions *1, |
Application Fields
The pump suction type combustible gas, oxygen, carbon monoxide, and hydrogen sulfide detector is suitable for various working environments in petrochemicals, metallurgy, chemical industry, and pipeline measurement.
