Product Introduction

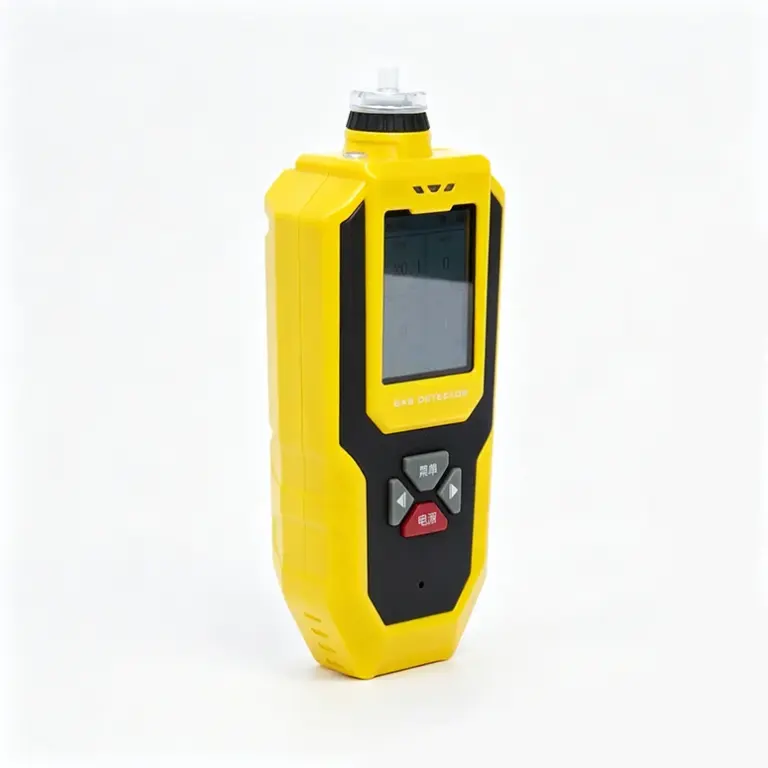

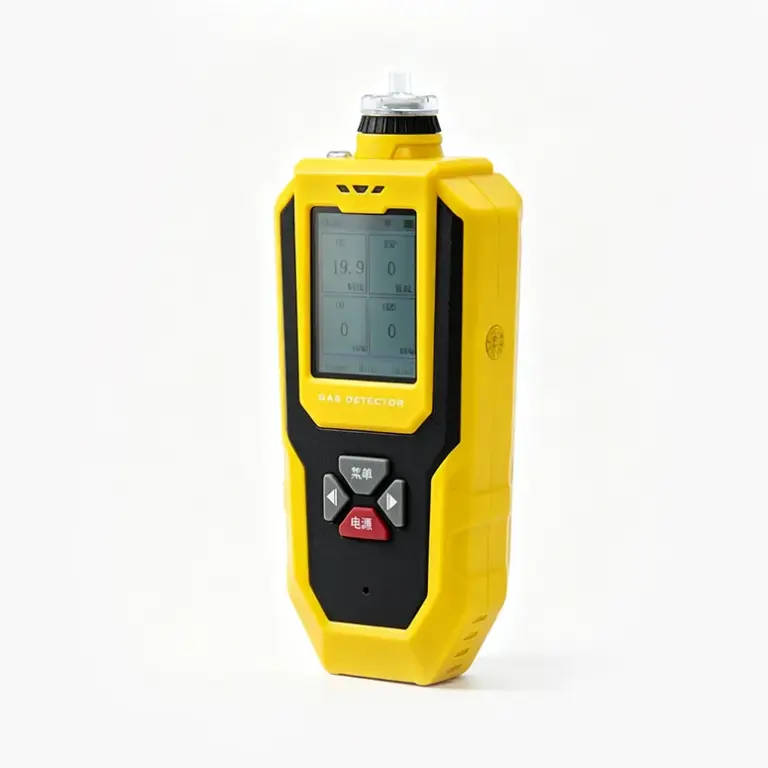

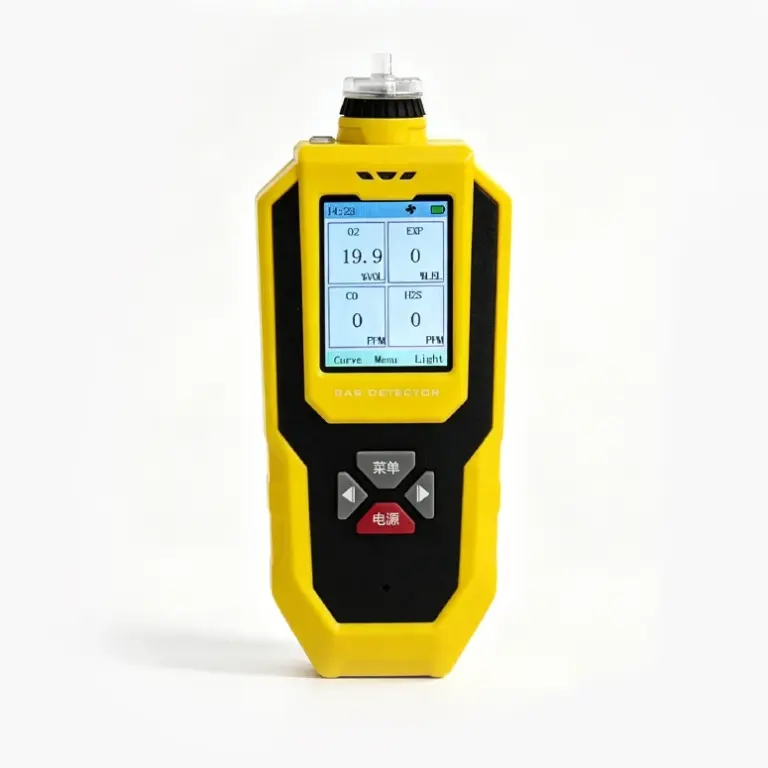

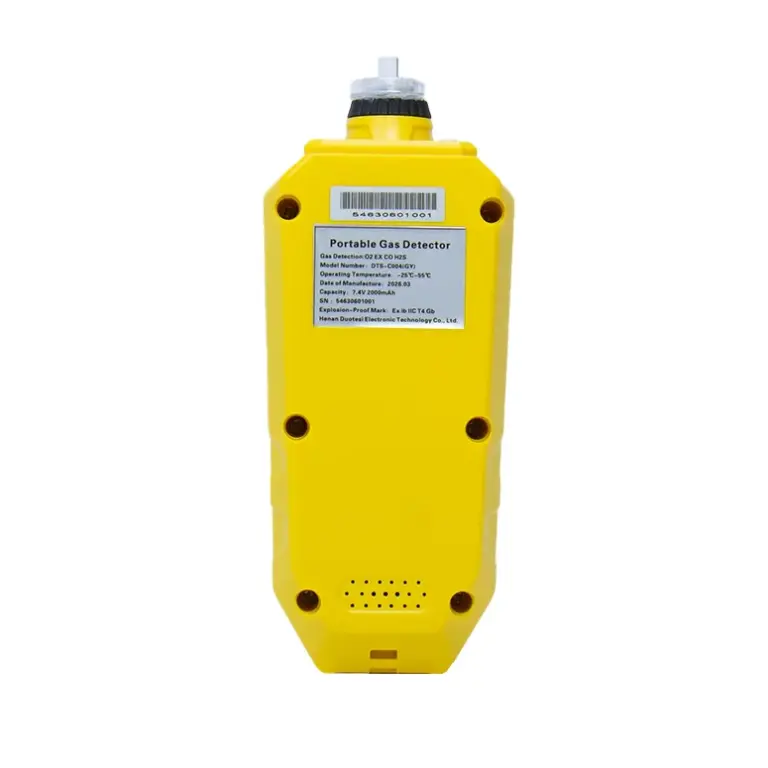

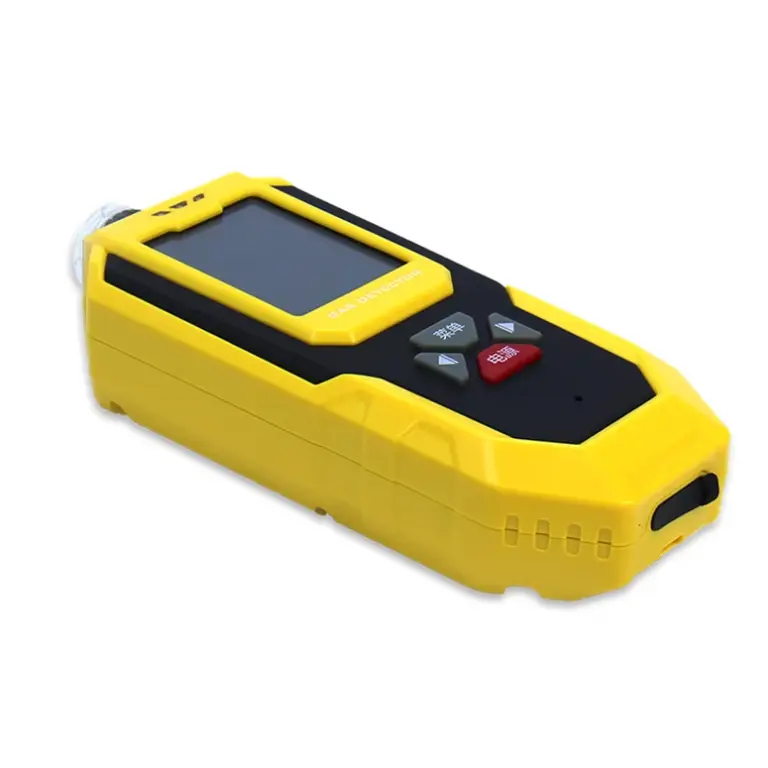

DTS-C004(GY) Pump-suction gas detector: Ensuring safety and delivering precise detection, it serves as your trusted guardian, continuously monitoring your work environment. Equipped with a built-in sampling pump that draws gases into a storage chamber, it employs advanced detection technology to analyze, display, and store gas concentrations, trigger voice alerts and audio-visual alarms, provide emergency lighting, effectively prevent gas leakage incidents, and safeguard both personal safety and property.
Product Features
Built-in sampling pump with five adjustable speed levels, suitable for various testing scenarios
High-brightness lighting for emergency illumination
Voice announcements and alarm messages for excessive gas concentration and low battery voltage
2.4-inch color LCD display with Chinese and English language switching
High-capacity lithium-ion battery for prolonged continuous operation
High-precision, highly stable gas sensors
Explosion-proof design for use in explosion-prone environments
Built-in storage with history record and historical alarm viewing
High-strength ABS engineering plastic housing, dustproof, waterproof and explosion-proof
Bluetooth printing of real-time, historical and alarm data (optional)
High-speed data export via USB interface (optional)
Fall detection alarm and SOS emergency call (optional)
Cloud platform for network communication, data and location reporting (optional)
Technical Specifications
| parameter type | Parameter Content | parameter type | Parameter Content |
| sample mode | Pump-suction type | display screen | 2.4-inch Color TFT |
| Operation Language | Chinese/English | Alarm Method | Voice, Audio-Visual Effects, Vibration |
| battery capacity | 7.4V 2000mAh | Instrument Charging | DC 5V2A |
| Air pump flow rate | ≤800mL/min | Shell Material | ABS+PC |
| explosion-proof sign | Ex ib IIC T4 Gb | levels of protection | IP65 |
| working temperature | -25℃~55℃ | Working Humidity | ≤93%RH |
| instruments weight | 350g | Instrument Size | 190mm*80mm*35mm |
