Product Introduction
The gas detection alarm controller is used to detect the content of combustible or toxic gases in the air, and supports four-bus or 4-20MA detectors, while centralized control of multiple points. The system uses a microprocessor as the control unit, when the concentration of combustible or toxic gas in the environment reaches or exceeds the preset value, the controller immediately sends an audible and visual alarm, and the relay can drive the exhaust air or other peripheral actions to prevent explosion and fire accidents, so as to protect life. The system can be widely used in factories, oil depots, liquefied gas stations, gas stations, gas stations, painting rooms and other places that need fire and explosion protection, safety monitoring and alarm
Technical Specifications
| Display screen: | 7″color screen model |
| Mode of operation: | Touch screen operation |
| Operating voltage: | AC110 V /AC220V |
| Backup power supply: | 24V1.3AH lead-acid battery(optiornal) |
| Switching output: | Four sets of passive relay outputs, contact capacity |
| Working temperature and humidity: | -10℃—50℃ ≤95%RH |
| System power: | Maximum power consumption 10W(without external devices) |
| Network capacity: | ≤250 PCS(more than 30 PCS require external power supply or accessories) |
| Detector connection: | Four-bus or 4-20MA |
| Data upload: | RTU-Standard modbus protocol |
| Cll point: | Two-level alarm,can be set freely by the user |
| Alam indication; | Indicator+LCD display buzzer alarm sound prompt |
| Working mode: | Field fixed installation,magnetic or backplane |
| Storage capacity: | Can store 20000 alarm record information |
| Apparent dimension: | Size 290*420*120(mm) |
| Wiring specifications: | If four cables need to be connected to wireless devices,it is recommended to use ≥RVVP4*1.5 national standard shielded cables with a single core cable diameter of≥1.5mm and a cablelength of≤1000m. |

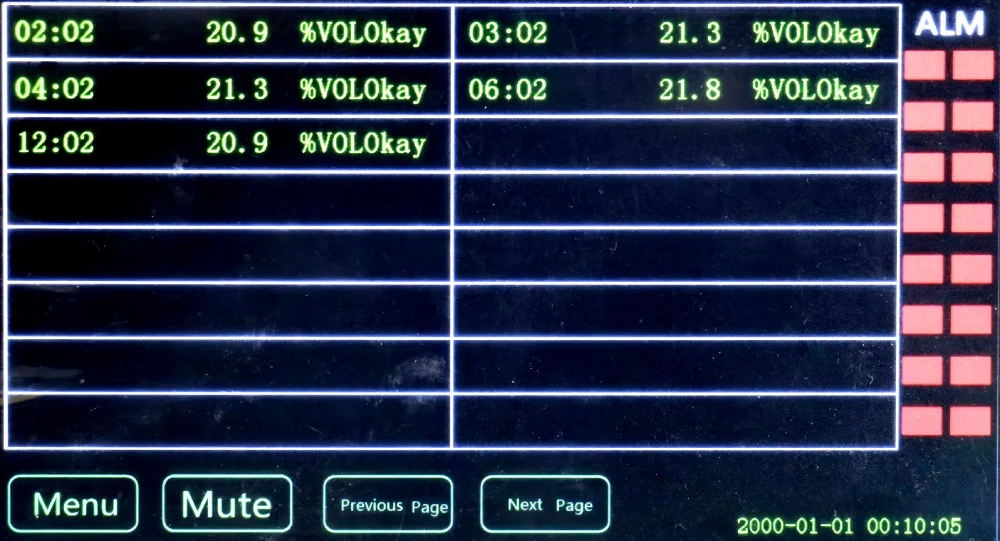

The Operation Panel Displays the Status
